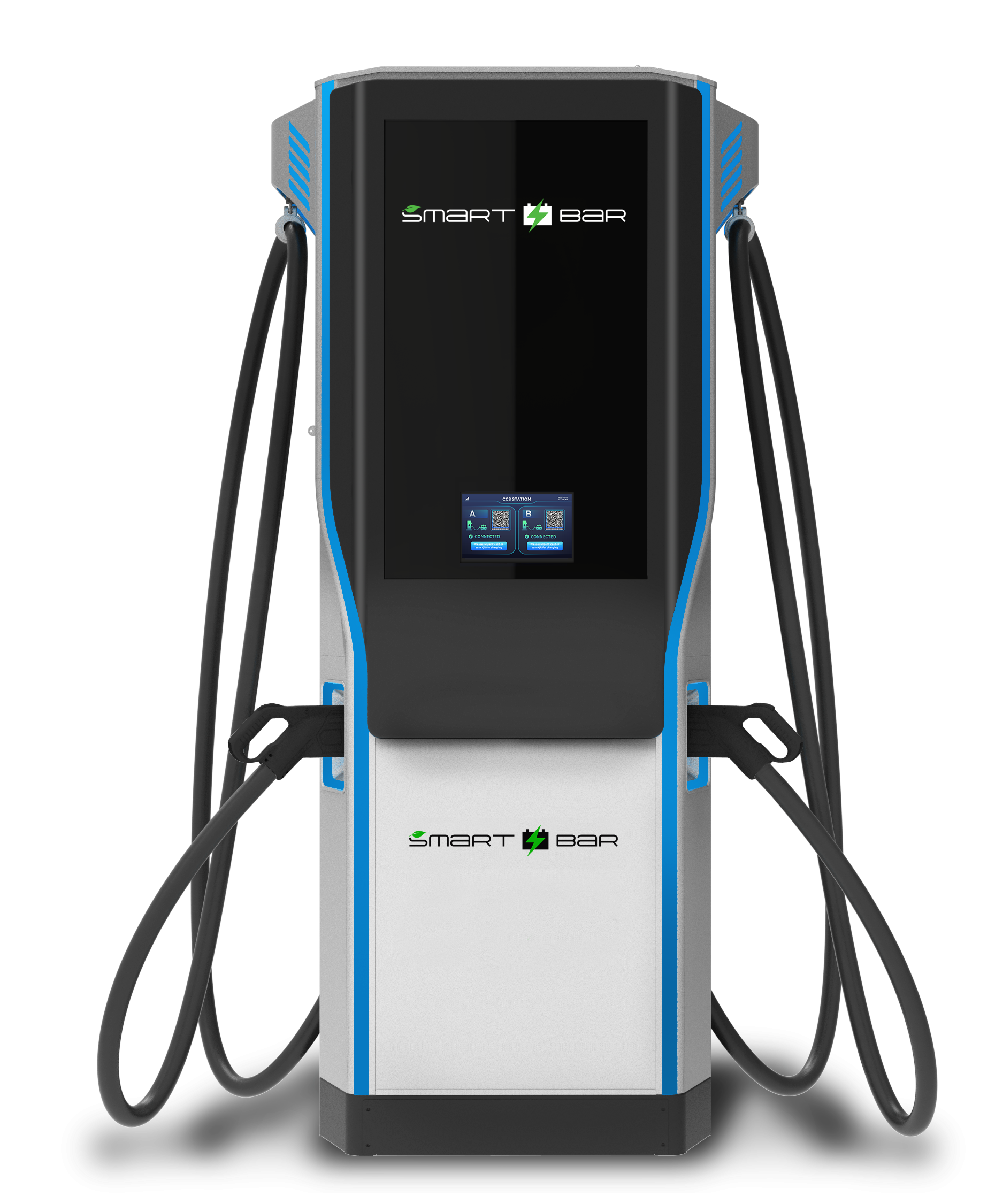

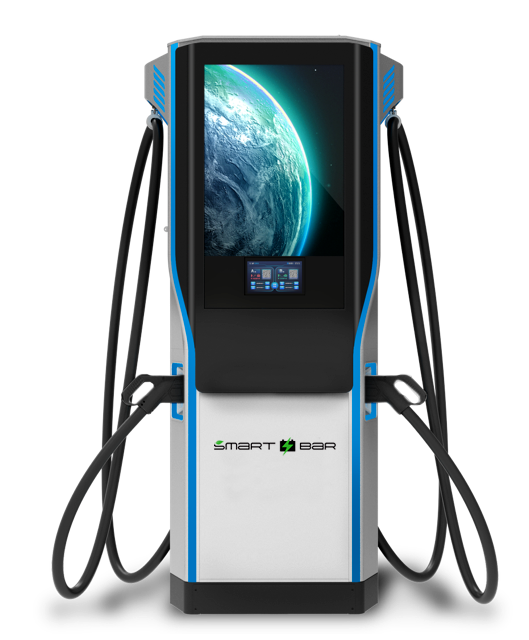

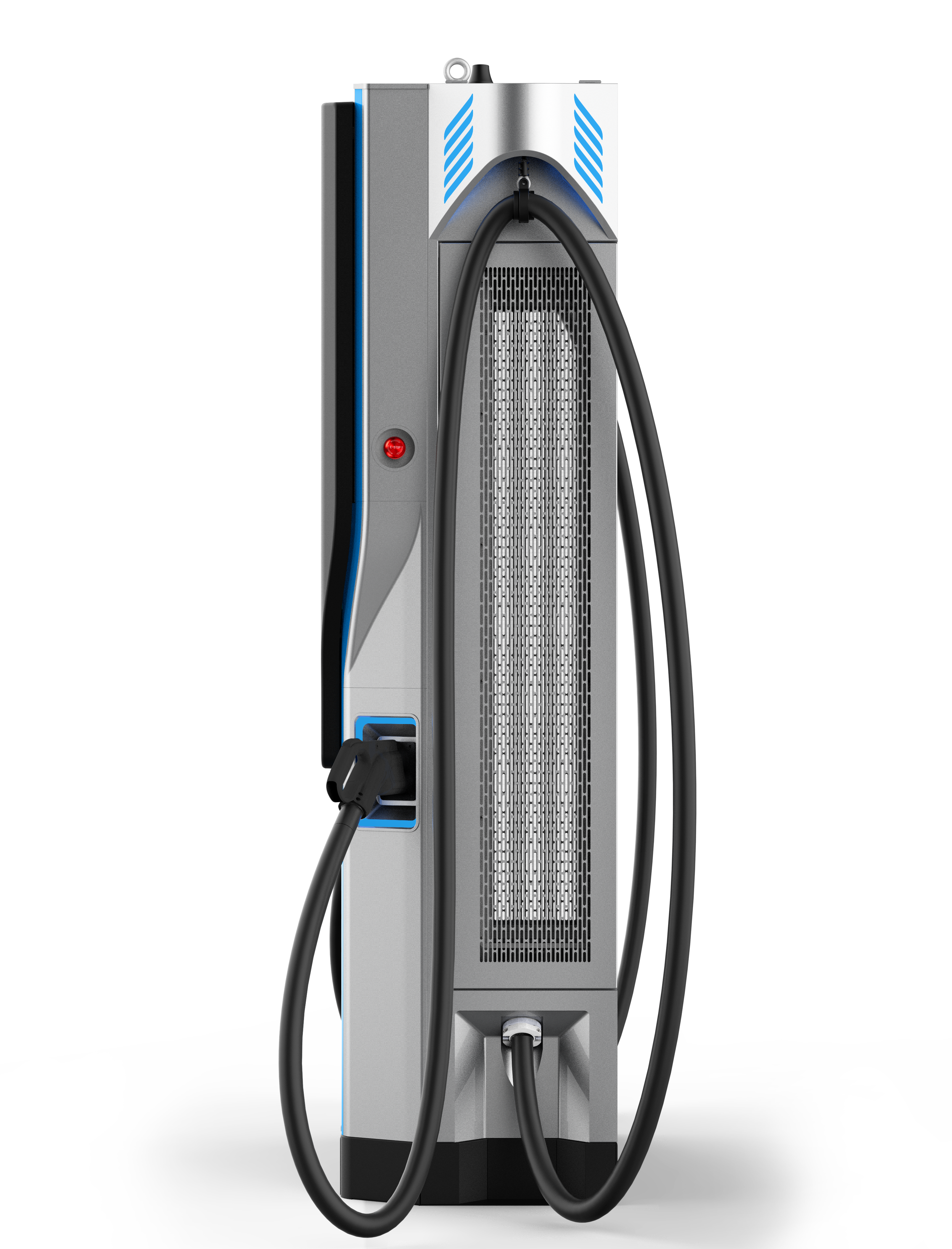

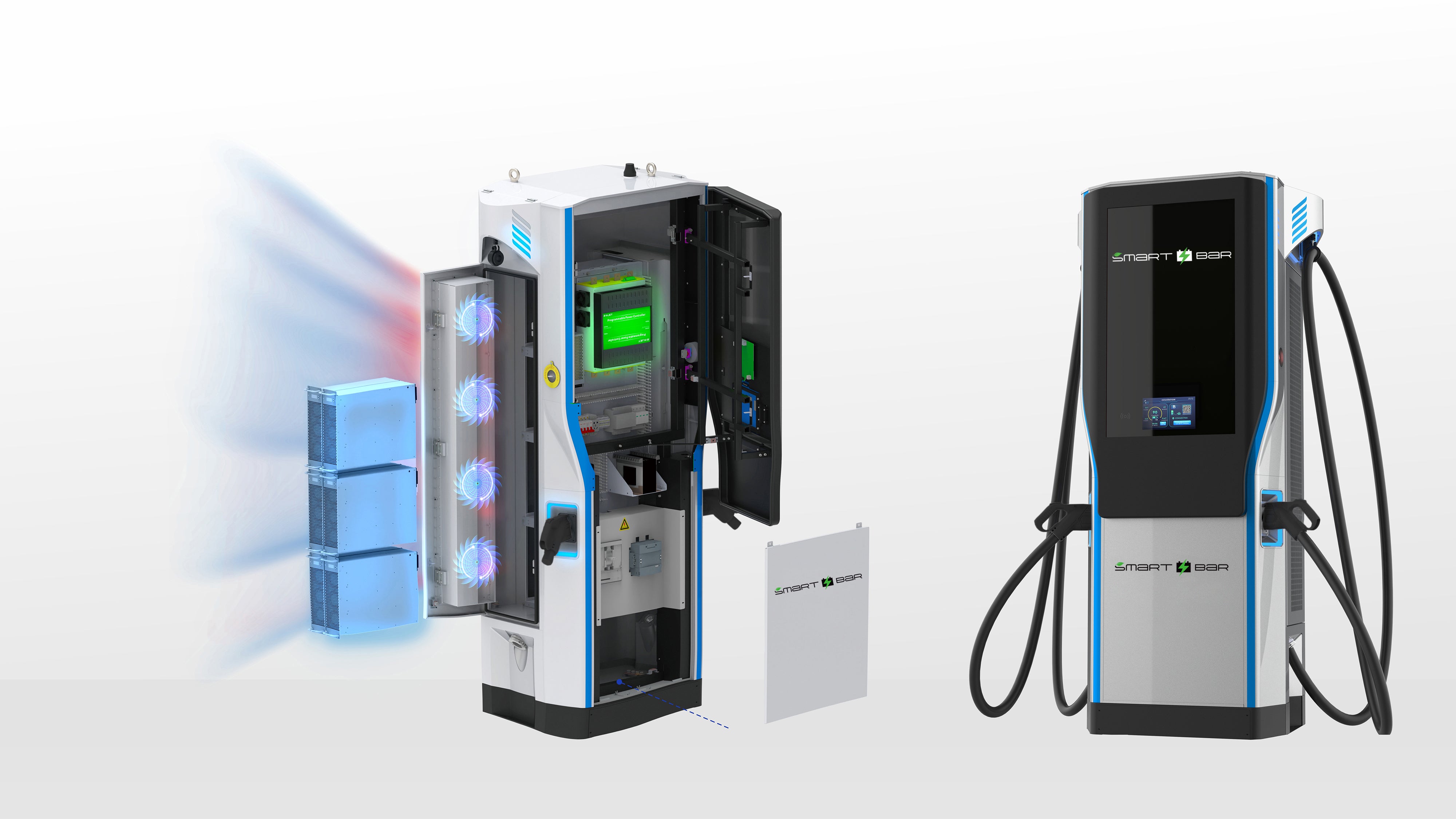

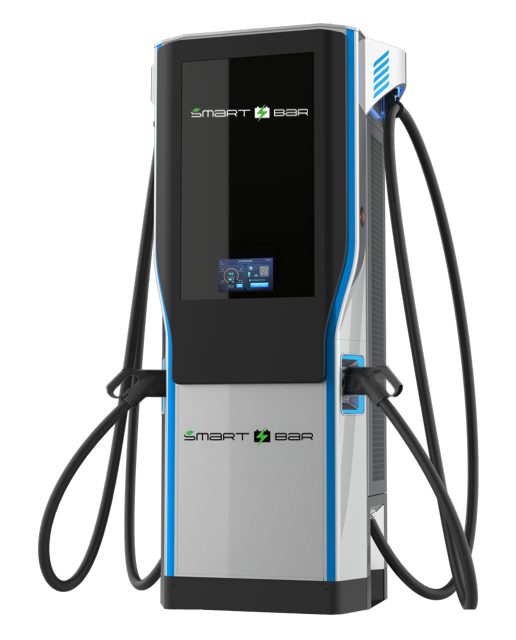

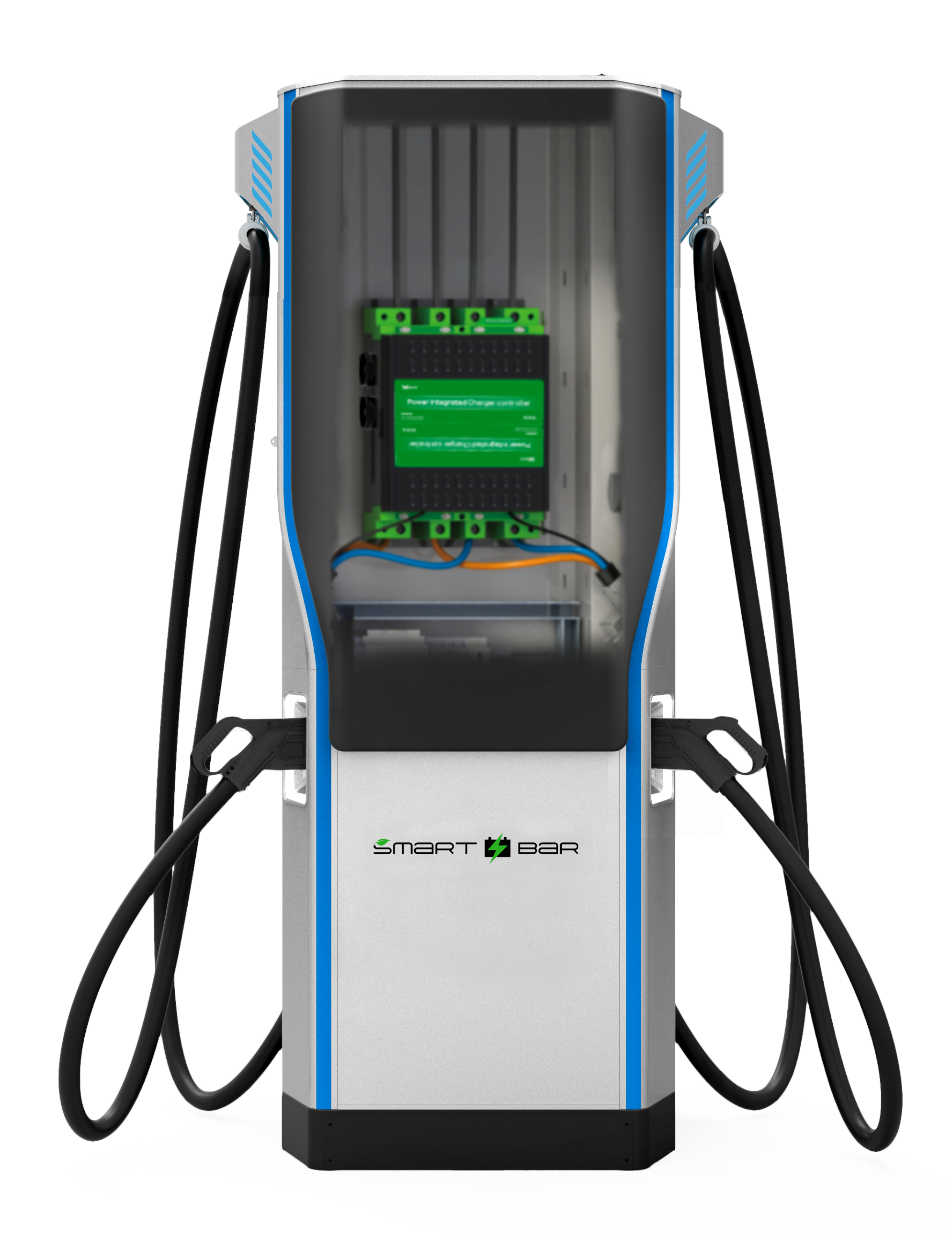

SBB Level 3 DC 480V 180kW

Our DC line incorporates the 180 kW and 240 kW commercial chargers. Both are engineered to fit your commercial and industrial charging needs, and deliver more performance for less investment.

For EV owners who demand lightning-fast charging performance without compromise, our cutting-edge technology ensures rapid charging, allowing your customers to hit the road with confidence in record time.

With the added convenience of wireless monitoring and operation through our dedicated app, your customers can take control of their charging experience and billing remotely and stay connected with one touch, thanks to 24/7 connectivity to the server. For commercial owners, our app provides easy administration of charging terminals and billing to users.

Experience the thrill of speed and efficiency with SBB DC chargers, setting the standard for rapid, reliable EV charging in a world that demands swift, sustainable mobility.

• Connectors: CCS1 + CCS1
• Output Power: 180kW (can charge two cars simultaneously at 90 kW each)
• Output Voltage: 150-1000V
• Output Max Current: 0~250A
• Supply Input: 480 Vac
• Supply Frequency: 45-65Hz
• Input Current: 227A
• Grounding Detection: 30mA
• Efficiency: ≥96%
• Power Factor: ≥0.99
• Harmonic Current: <=5%
• Ripple Voltage: 1%
• Network Connectivity: Ethernet/4G/WiFi
• Communication Protocol: OCPP1.6J
• Charging Cable Length: 8 meters
• Start-up Mode: Automatic charging/RFID card/ App
• POS(Credit Card Reader): Optional(enabling card payments)
• LCD Display: 10-inch LCD touch screen
• Protection: Over/under voltage protection, overload protection short
• circuit protection, under temperature protection, surge protection,
• communication failure
• IP rating: IP54
• Emergency Stop Button: Yes
• Cooling Method: Cooling Fan
• Operating Temperature: -30℃～55℃
• Operating Humidity: ≤95%RH without condensation
• Dimensions (WXDXH): 40 x 24 x 80 inch
• Weight: 420 kg
• Certification: ETL, FCC/IC
• MTBF: >1,000,000 hours
• Warranty: 3-year limited warranty
